; spirograph3d | rhino / grasshopper | Bert Simons | Portfolio

little experiment with 3 dimensional spirograph prints

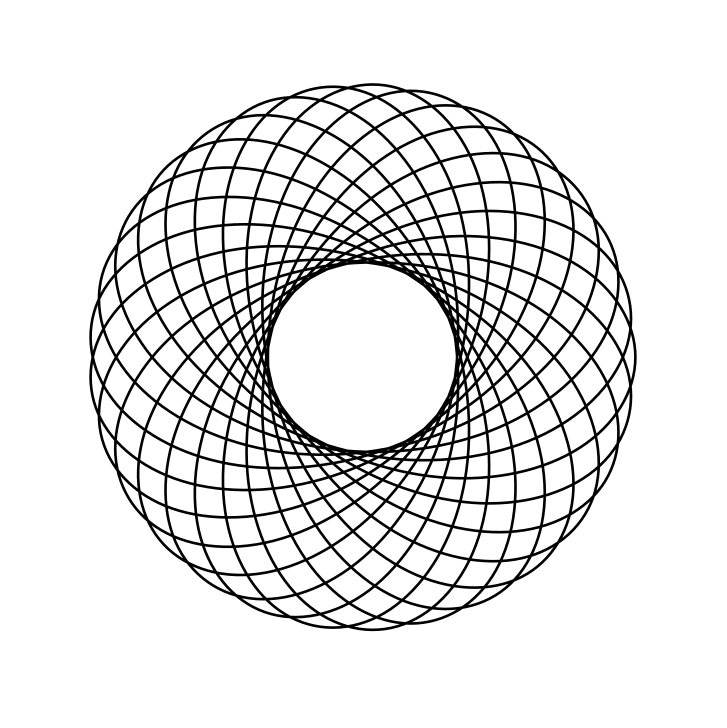

2017-03-26_16h30_41

A familiar spirograph drawing

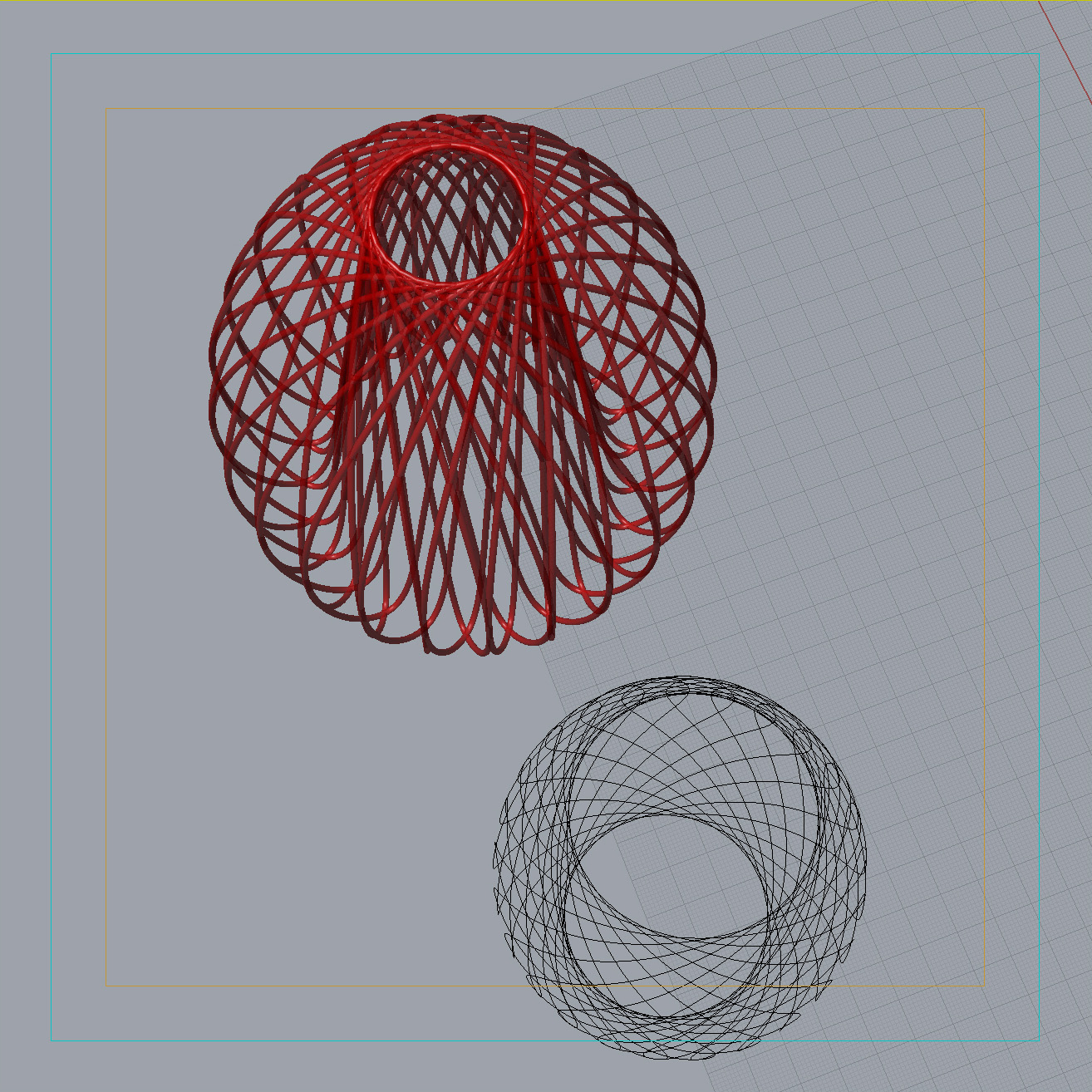

03

using rhino/grasshopper to transform it into an 3dimensional shape

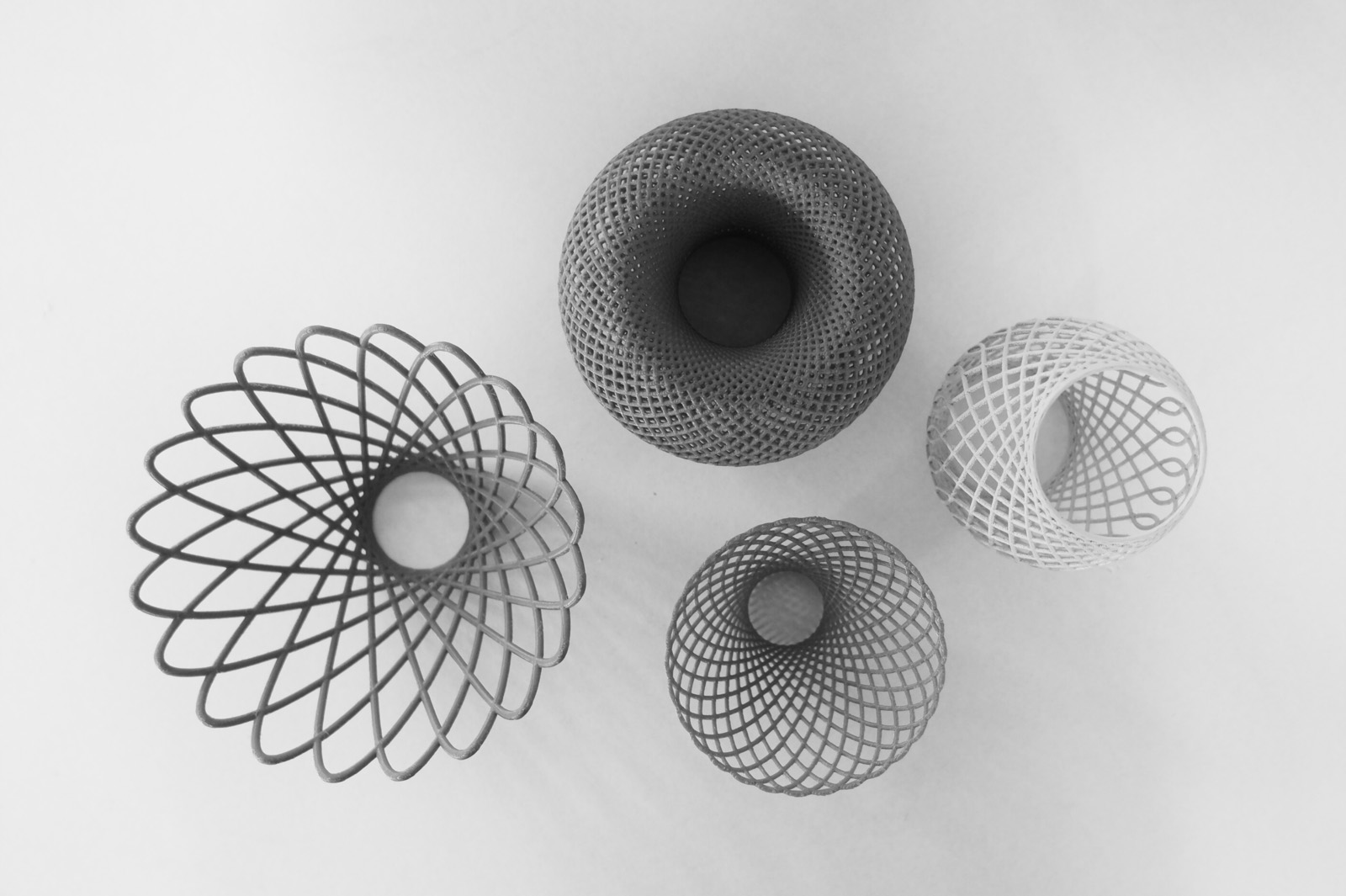

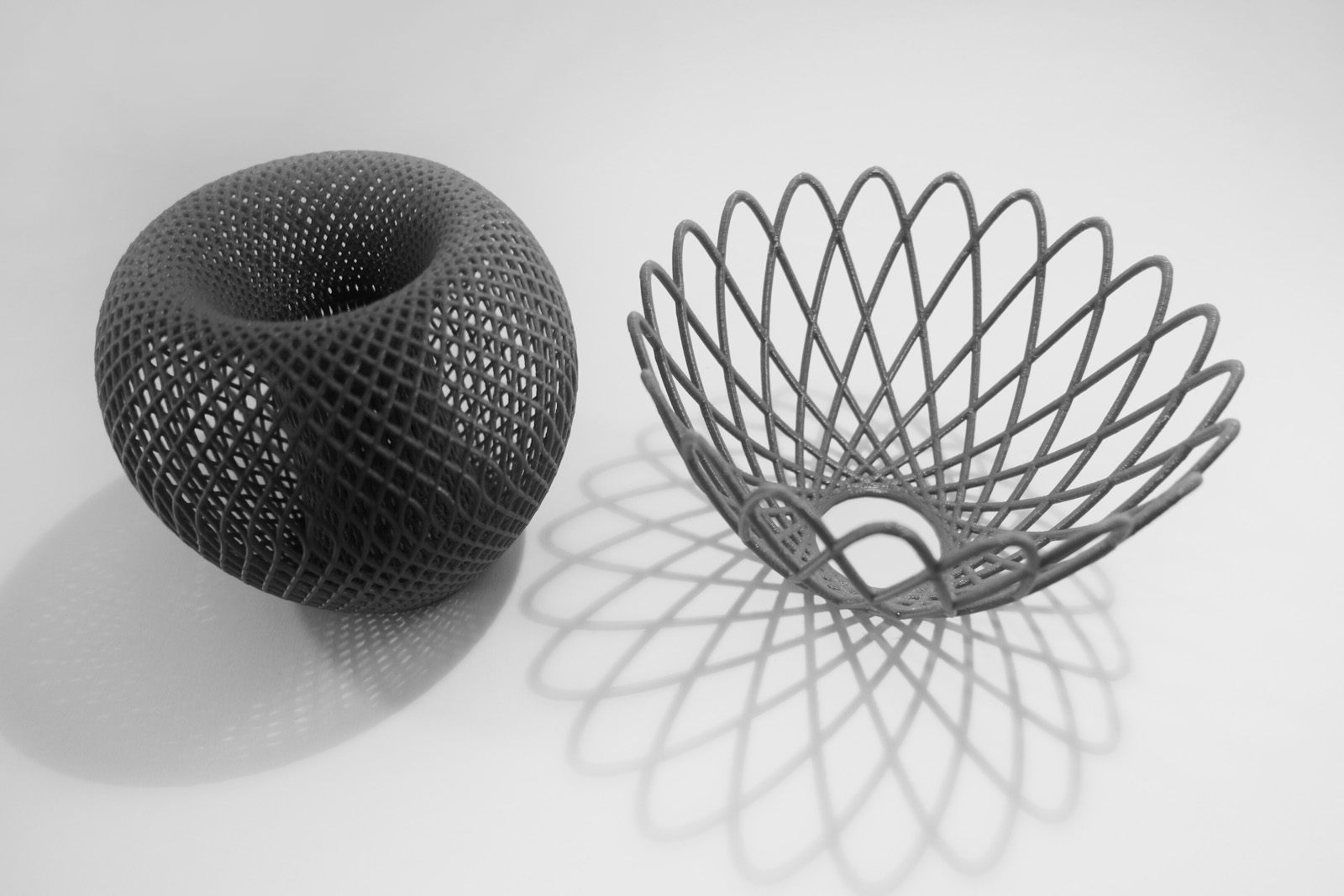

SAMSUNG CSC

SAMSUNG CSC

SAMSUNG CSC

SAMSUNG CSC

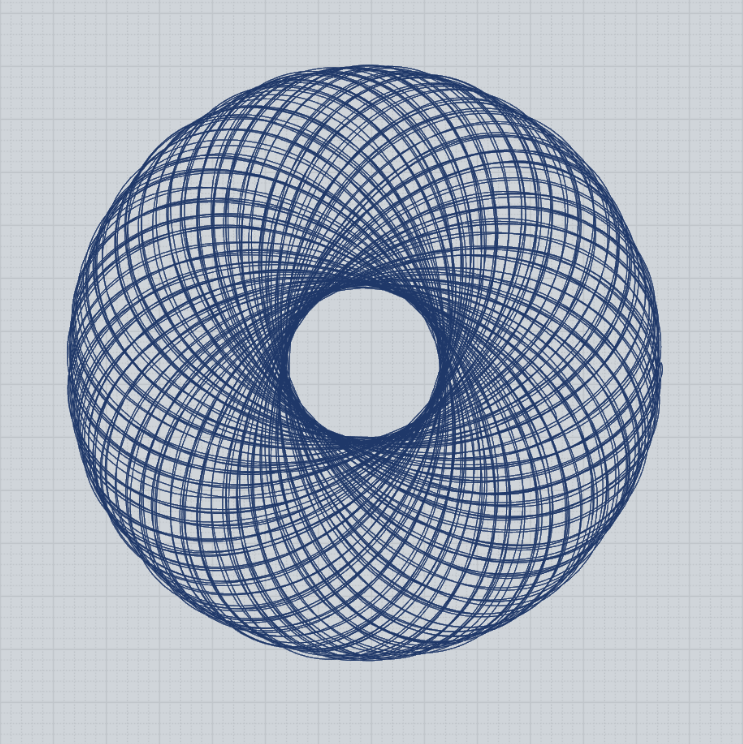

woobly2

added some code to the grasshopper script to make the initial drawing more handdrawn. next stepis to get some prints with that, each slightly different.
