An ongoing project which I started in 2014 as a last minute entrance for the dutch design week. Since, in between jobs, I slowly made some iterations.

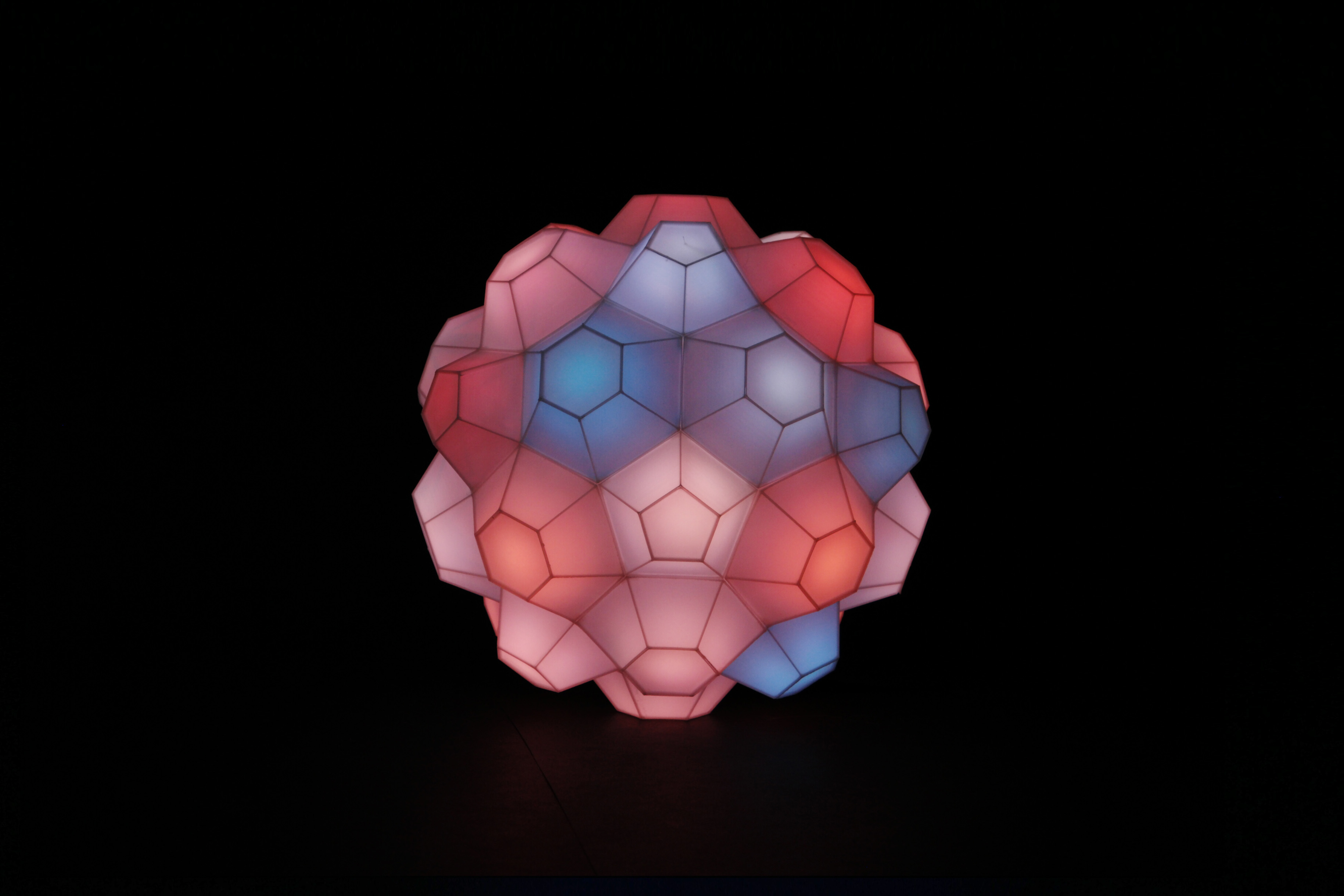

finsihed icoled wit some color patterns


SAMSUNG CSC

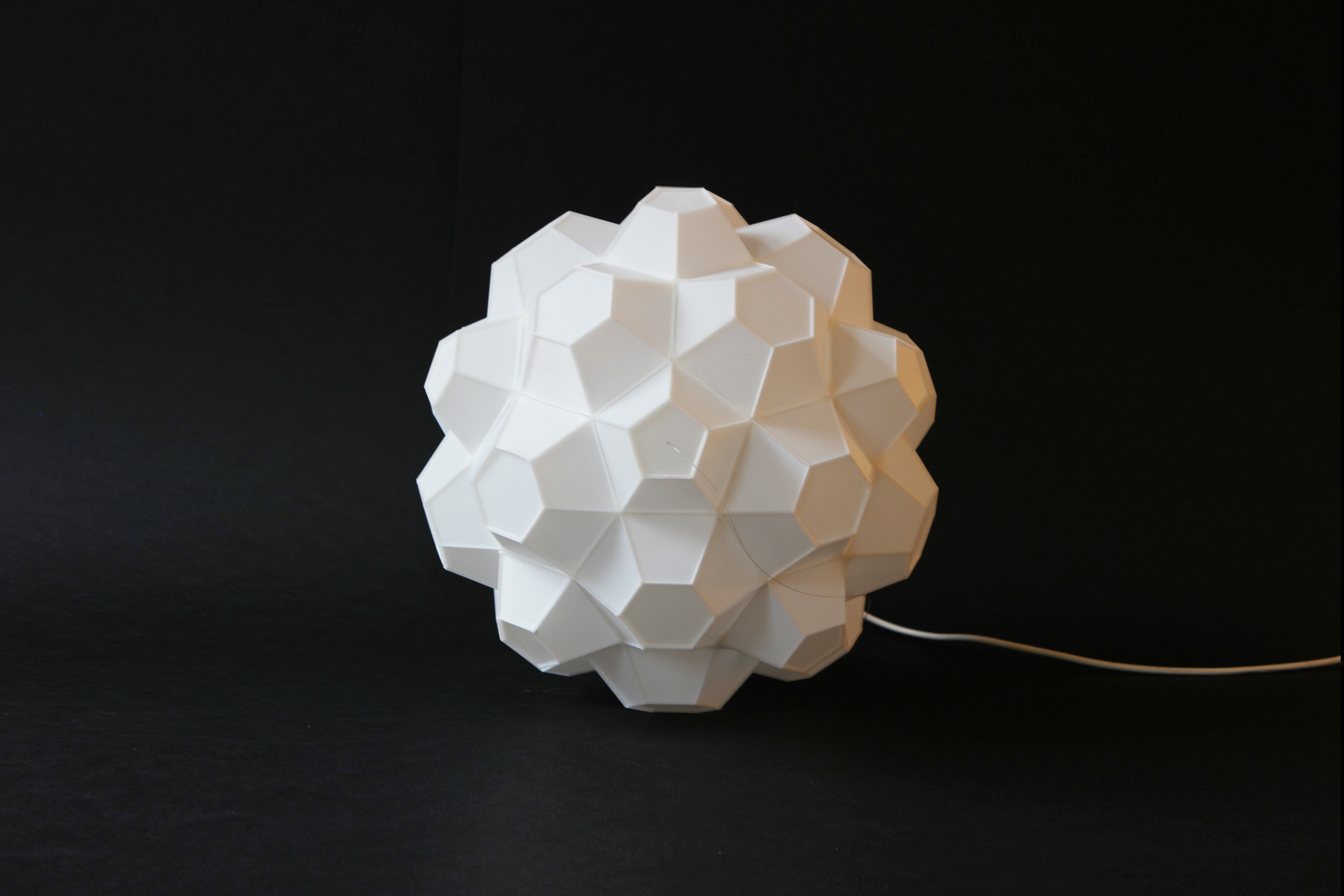

32 3d printed parts forming a so called stellated truncated icosahedron

SAMSUNG CSC

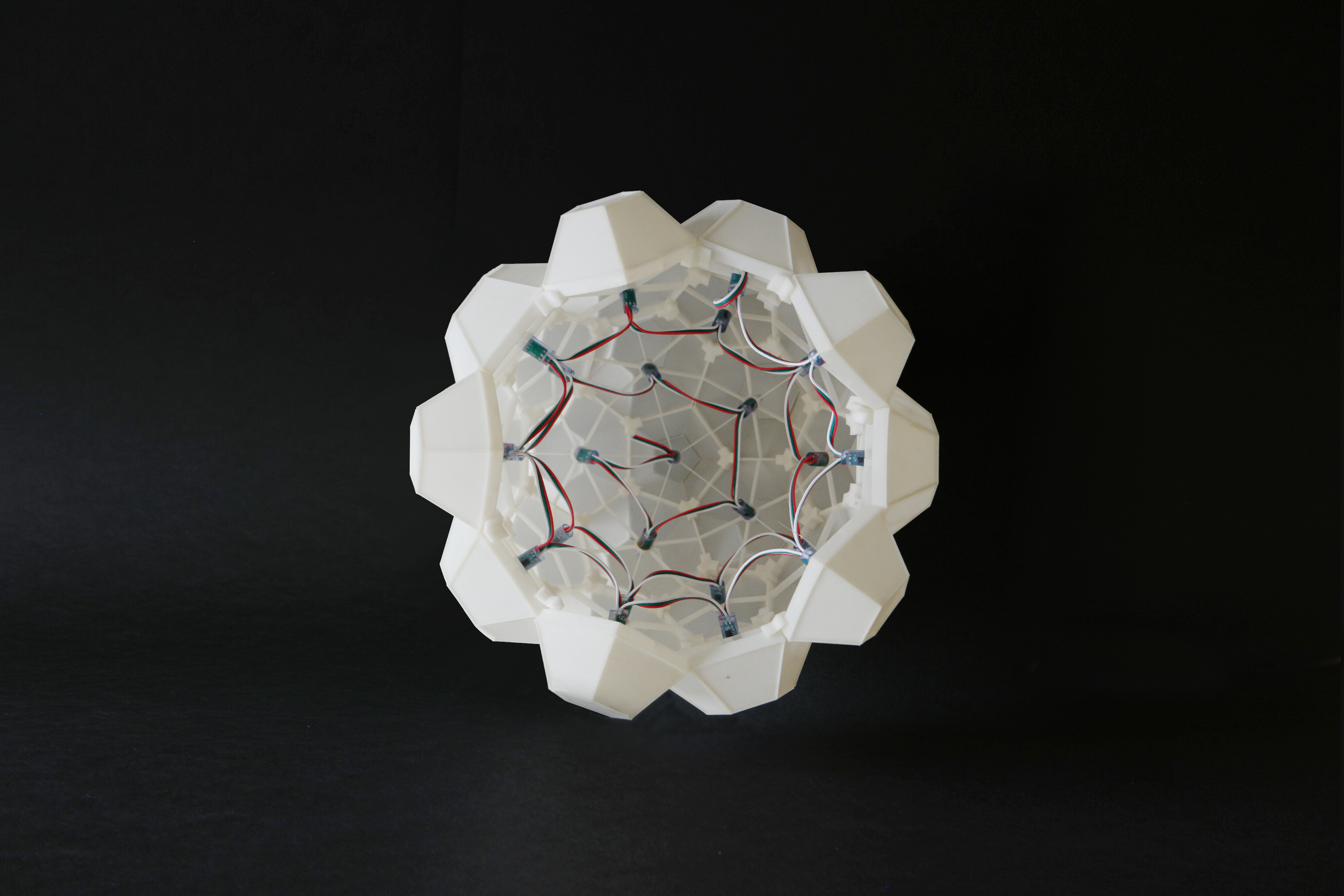

on the inside 31 leds are attached to each module

SAMSUNG CSC

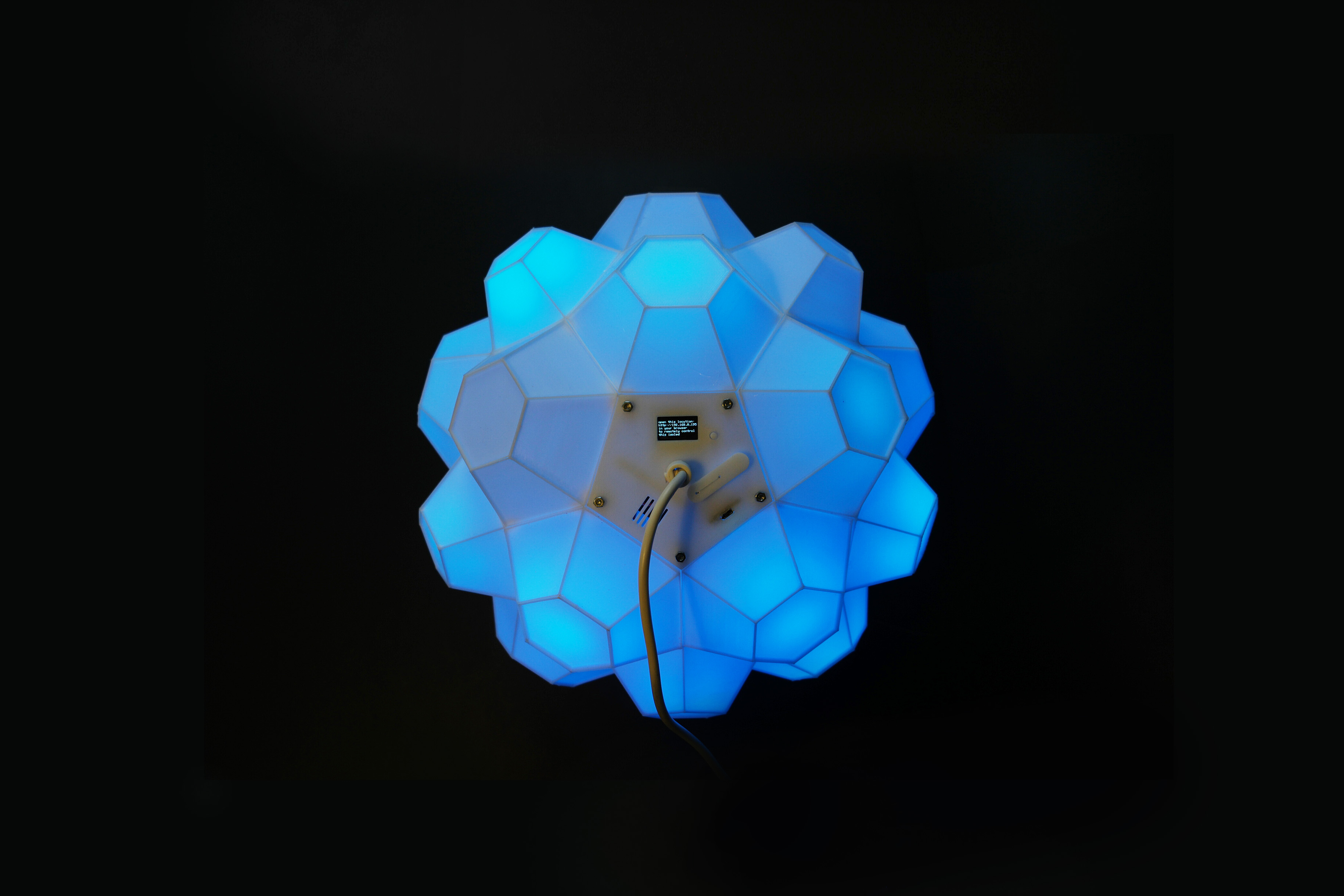

on the top there's a button for scrolling through the color palettes and in 2018 a lcd screen was added for remote setup (wifi/password etc)

SAMSUNG CSC

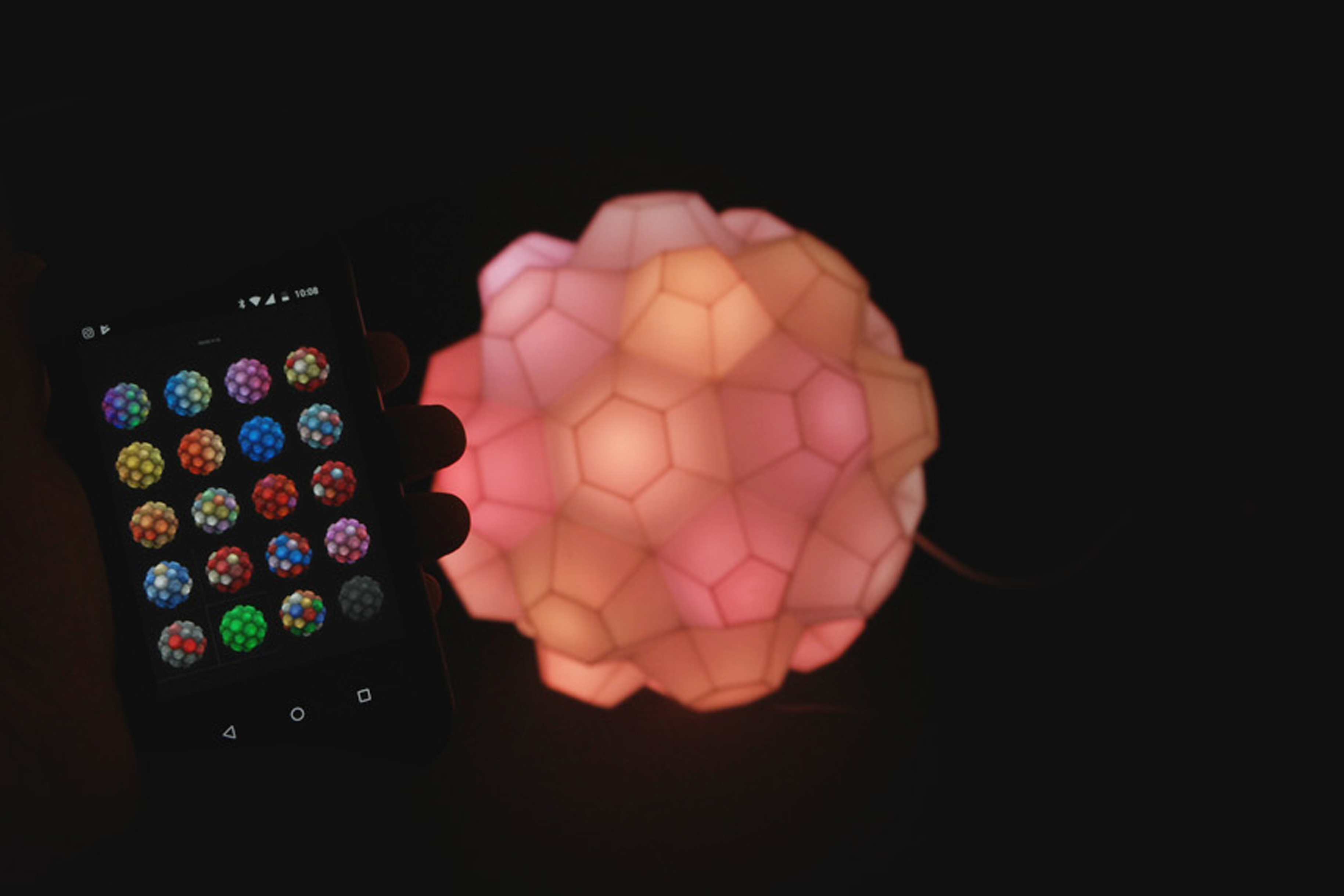

the phone app

SAMSUNG CSC

SAMSUNG CSC

SAMSUNG CSC

a timelaps showing the assembly of an icoled. (click image to watch)

iterations

icoled v1 2014

paper isocahedron with led lights Paper hanging light.Made a truncated isocahedron with 32 paper cells, diameter is about...

9 images

icoled V2 2017

the icoled is a 3d printed continuation of the isoled paper version a made a couple years ago.

13 images

icoled V3 2018

The icoled finally is now a IOT thing. I changed the Arduino for a Particle Photon microcontroller. Color palettes can now be changed...

2 images
